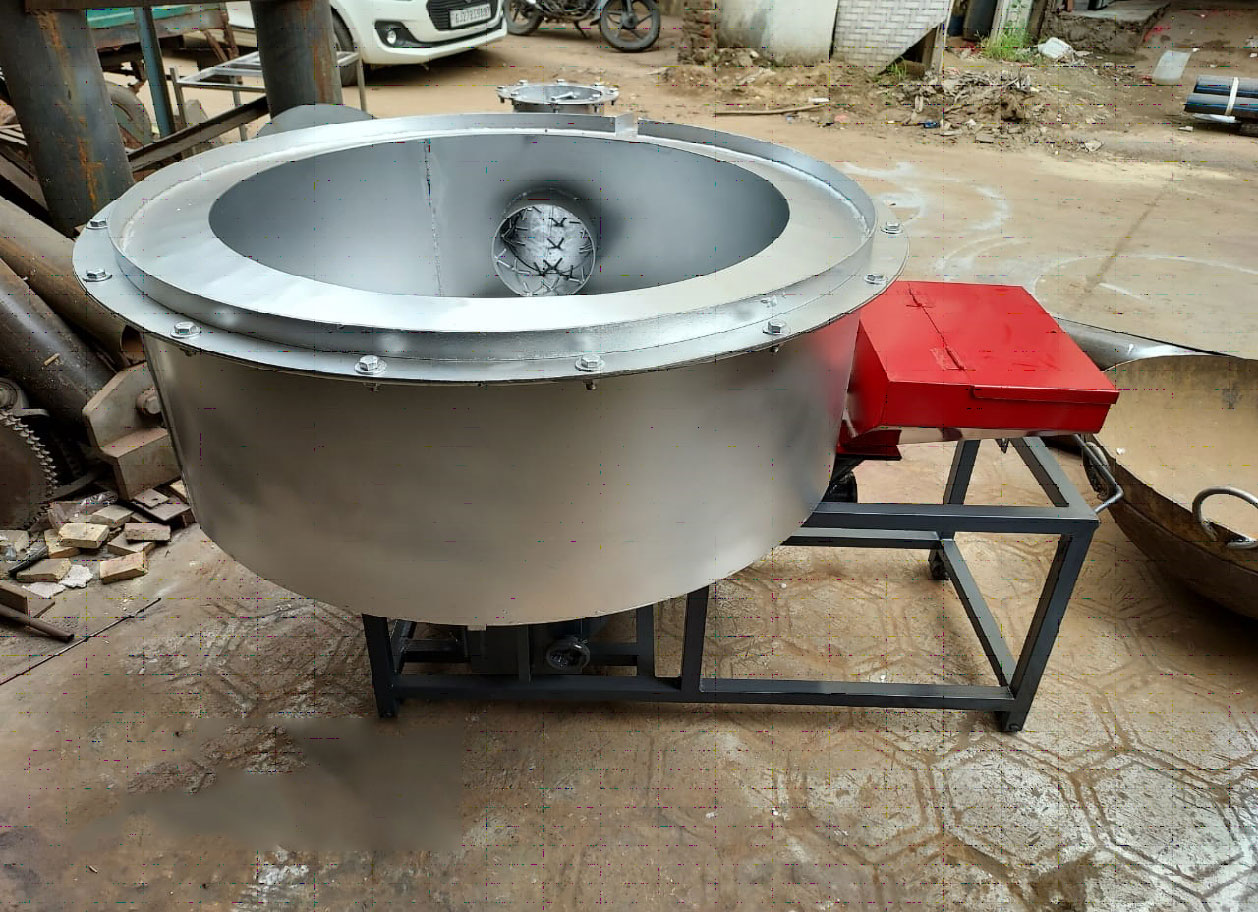

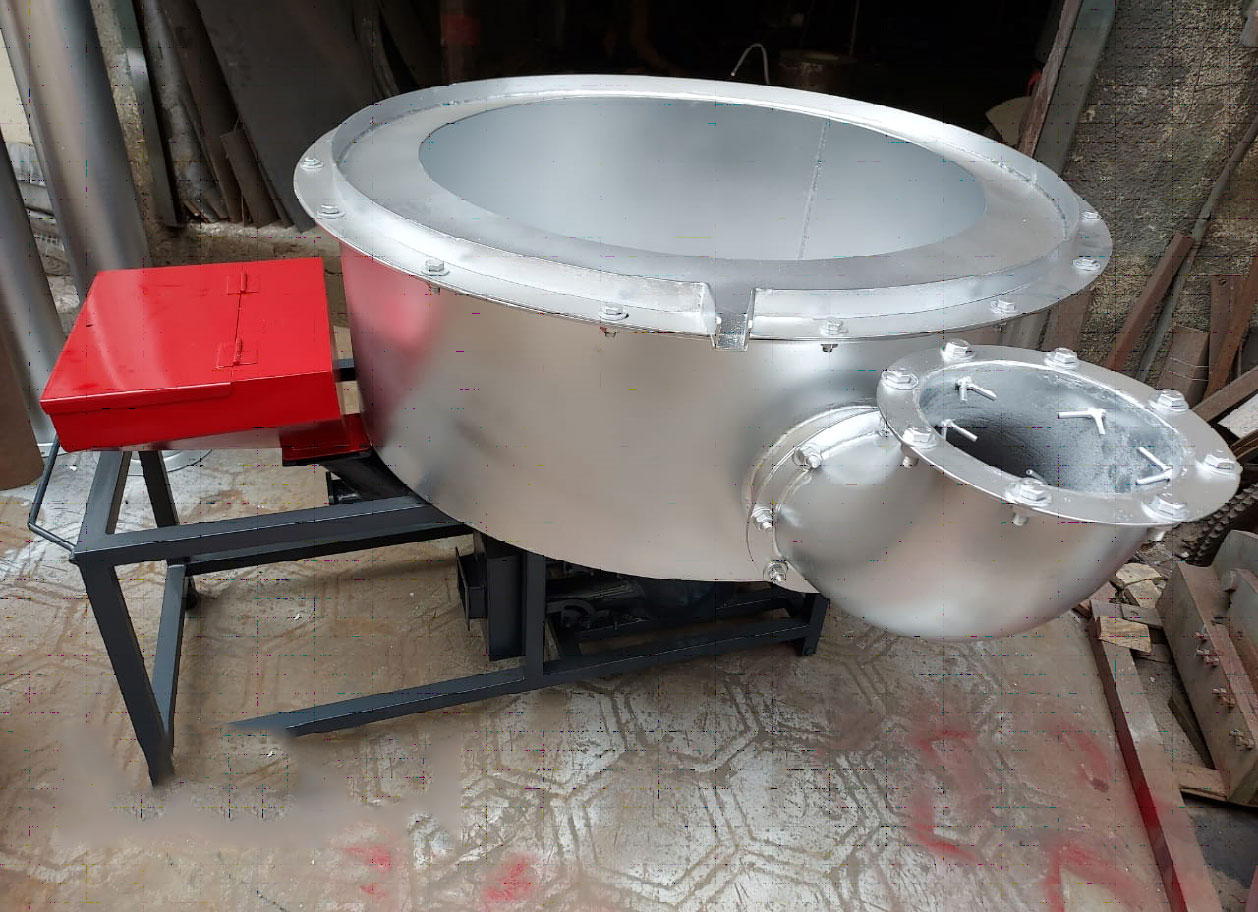

Agni - Integrated Batch Fryer

It’s a low cost integrated approach which replaces costly traditional batch fryers used for various oil /nankeen frying applications.

Features

  • From 30” Inch to 48 Inch” full Stainless Steel kadhai ( Customized)
  • Stainless Steel Jhara with Kadhai for easy transfer without spilling the oil.
  • Kadhai Ring made from 1600 Degree temperature resist Ceramic Refractory and Fire Bricks
  • Pellet Consumption 20 to 45 kg/ hour
  • Temperature Display Screen
  • Easy Control settings from Panel
  • Easy ash withdrawal grate
  • Automatic fuel feeing screw auger with safety waive
  • Self ignition/Manual Ignition both
  • Consumes very less electricity & 50% efficient compared to LPG and Diesel

Specifications

Consists
230V Single Phase Electric Blower 150 Watts for primary and secondary air
40 Watts DC Motor for fuel feeding
230V Igniters
Auger with feeder
Electric Control Panel with Temperature Display & Controls.
