Agni Star

  • Roll over image to zoom in
  • Roll over image to zoom in

Features

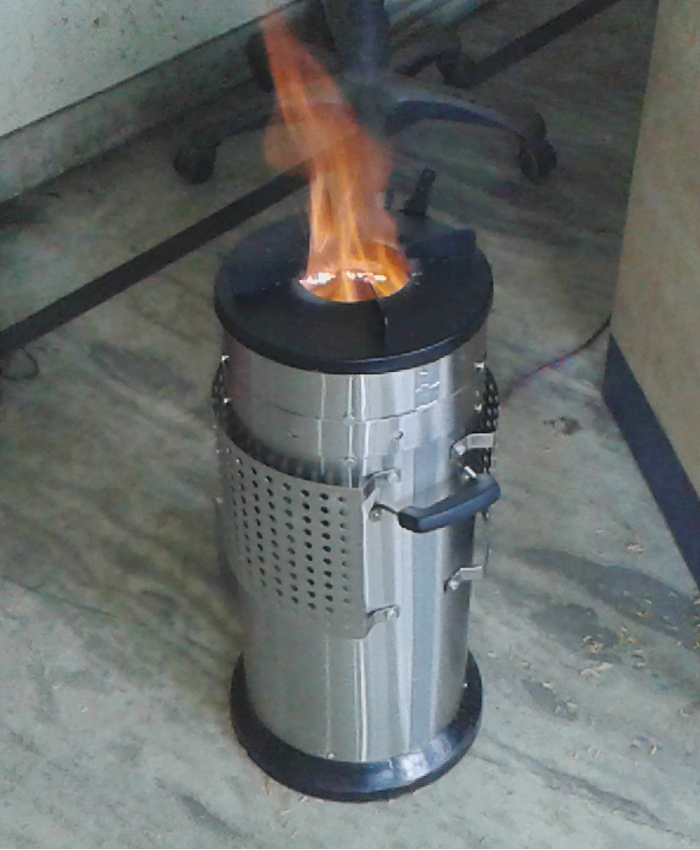

Agni Star is a Batch type portable forced draft Single Burner & TLUD (Top-Lit Up Draft) Stove."Rice Husk" is the Fuel used in this Stove. It is a second generation domestic stove technology that converts Agro-Waste (Rice Husks) into gaseous fuel for domestic cooking. Consumes only 600grams of rice husk and produce efficient flames 40-45 minutes of cooking. It can cook a meal of 4-6 persons within one feeding while leaving no soot's & smoke in the Kitchen.

  • Available with an AC/DC/Solar (Combo) [10W Solar Panel to charge battery (controller).]
  • Available with 5in1 DC Mobile Charger.
  • A 12VDC fan 0.40Amp and a 4.5AH SMF battery is configured inside the charge cum fan controller.
  • Can sim the flames through potentiometer. No fossil fuel is required for ignition just few pieces of paper.

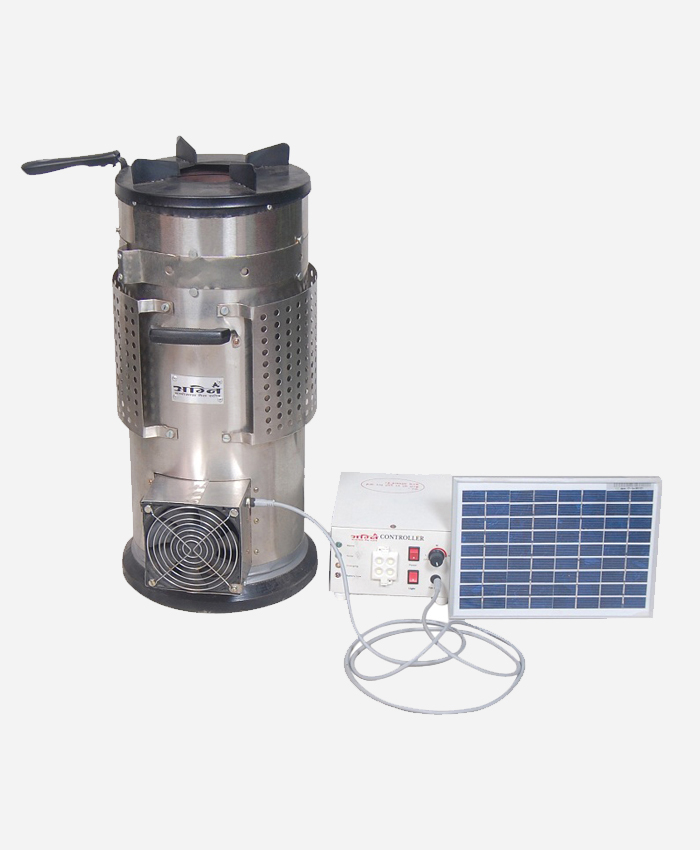

Stove with 230 Volt SMPS Adapter, Fan Connecting Cable, Fan Regulator Box with Option for connecting external battery

MRP : 4500

Optional Accessories

Combo Power Box with inbuilt battery & Solar/AC Charger

MRP: 2000/-

Solar Panel 12 Watt

MRP: 1200/-

Ideal for:- 4-6 person family (Family Size Stoves)

Warranty
Stove : 1 Year
Battery: 6 Months

Specifications

Features Descriptions
Fuel Required 900 gm of Rice Husk per load (Batch Type Loading)
Stove Size 30*30*50 cm
Stove Weight 10 Kg Stove & 2.5kgs Combo Controller
Reactor Type Stainless Steel
Battery 12V/ 4.5Ah, MNRE, Govt of India Approved
LED Light LED Light (1Watt ) Mounted on DC UPS
Fan 12V ( 0.35Amp DC Fan)
Capacity Could take load up to 25 Kg.
Battery Backup 1)Only Fan: 8-10hrs
2)Only Light: 25~28hrs
3) Both Fan & Light: 5~ 6 hours

Performance

Features Descriptions
Thermal Efficiency 34.54%~35% ( Tested by IIT-Delhi)
Operating Time 45-50 Minutes (Depending upon operation/Rice Husk Type)
Particulate Matter (TSP) 79.59mg/MJd
Power Output 2.16Kw
CO 5.23g/MJd
