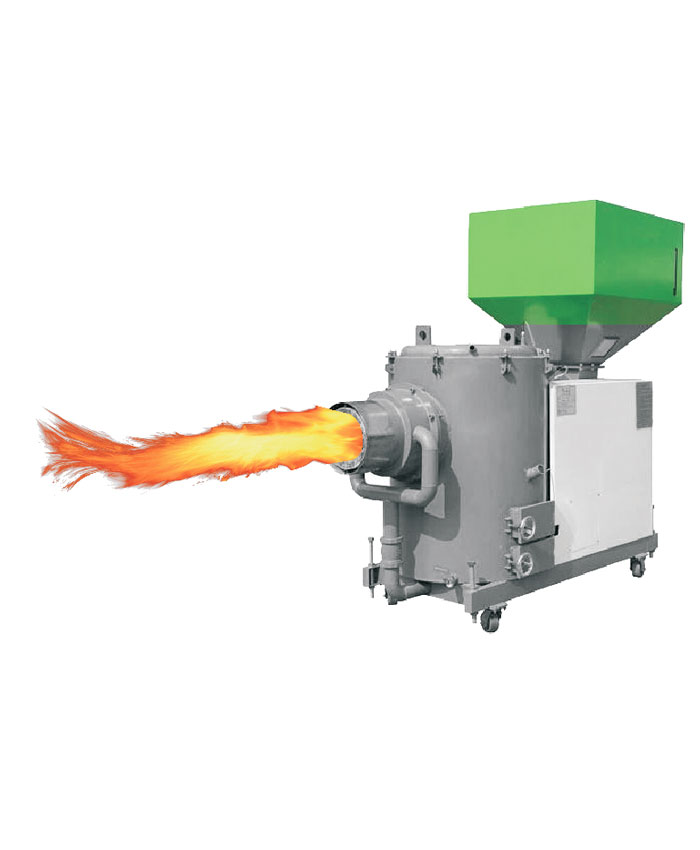

Agni Wood Pellet Burner

NDMI Burners excells in combustion efficiency. In combination with intelligent power Controls & High Alumina content ceramic combustion Chambers it saves as much as 28% of fuel in comparison to conventional biomass combustion Heaters and Stoves & 50% if compared to LPG and Diesel Burners.

Fuel Data (PELLETS) Any Standard Make

Pallet Diameter 8/6 mm
GCV 4000+/-2% (k cal/kg)
Ash <5%
Moisture <10%
Bulk Density 600-730 kg/m3
Make Any Standard
Raw Material Pure Pine Wood

Technical Information

Burner Capacity (Kcal) 200000 Kcal/hr.
Fuel Feeding Rate (Min-Max) 20 - 50 kg/hr.
Fuel Wood / Saw dust Pellets
Fuel Consumption at Max Avg Dia 150 mm
Avg. Length 750-900 mm (Depending upon fuel feeding rate)

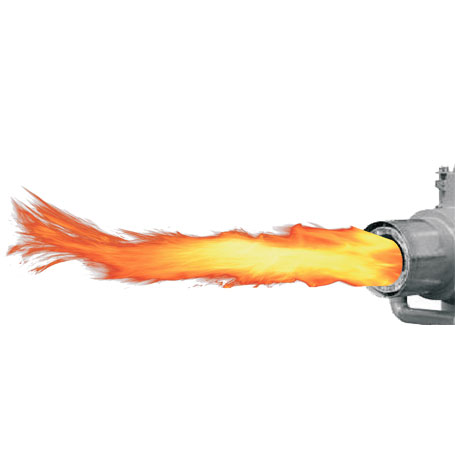

Combustion head Dia @ 180 mm
Combustion head length 440V - Three Phase
Power - max @ 1HP
Power - average run @0.7 HP
Ignition 1. automatic Option also
2. Manual (to avoid routine maintenance of heater as one time process in day
Ash Handling Manual from fire door (no need to stop burner for it) (to avoid Unnecessary routine maintenance of cylinder & grates.
Fuel Feeding Automatic by programmed PLC screw feeding mechanism & Level Sensor.
Temp control & burner operation Automatic through PLC controlled pre-wired panel & J type Temp Sensor.
Control Panel PLC control panel incl. colour touch screen HMI, VFD for Blower, Relays, Fuses, Buzzer & other standard safety control feature

Overall Dimensions

Length (mm) 1800
Width (mm) 900
Height (mm) 1600
(Subject to change in final design)
Weight 950 Kgs. Approx

Main Features & Benefits

  • Suitable for small & medium industrial processes
  • PLC with auto temp control system
  • Manual easy ignition mode
  • Auto temperature / pressure control
  • Easy ash removal method with HOLD MODE of PLC
  • User friendly touch screen HMI
  • Save 30-50% in fuel cost against LDO/LPG/PNG/NG/FO*
  • No/Less modification is required in existing system
  • Easy installation
  • No explosion risk due to less fire hazzard
  • Controlled combustion
  • Green eco-friendly environment

Production Description

  • Fully automatic step modulation burner with easy auto ash removal system. The burner is intended to be used with 6-8 mm dia pellets.
  • Can be retrofitted in different liquid/gaseous/solid fuel based equipment systems.
  • Designed with automatic output control based on temperature or pressure requirement of the existing system which makes it, extremely user friendly.
  • The unique ignition and automatic output control, provide greater flexibility makes using this pellet burner very easy
  • The burner is equipped with a air chute for protection against back-burning.
  • This is also uniquely designed to prevent back firing of fuel.

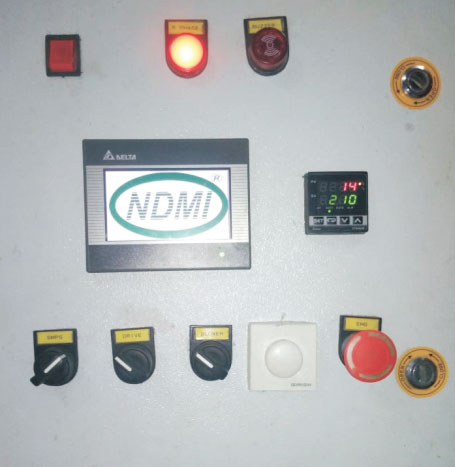

Agni Control Panel Features

  • Graphic Display
  • Info Key
  • Intelligent Processor
  • Alarm System
  • Bright Light Indicators
  • Feaul Sating

Applications

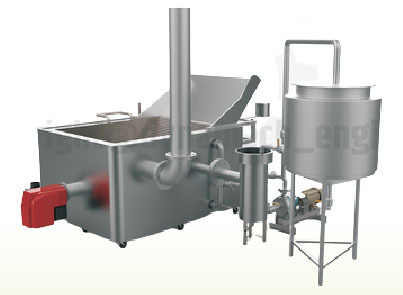

Oil Heating Fryers

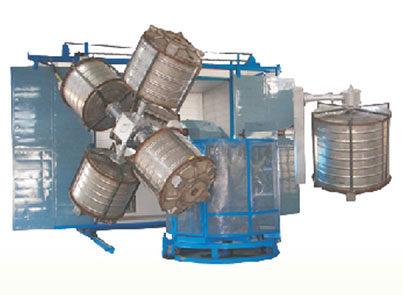

Rotomoulding

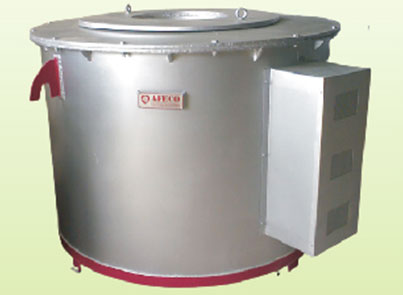

Aluminium melting furnace

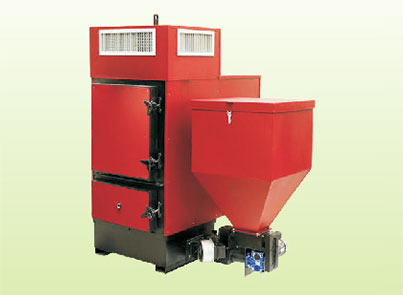

Hot air generators

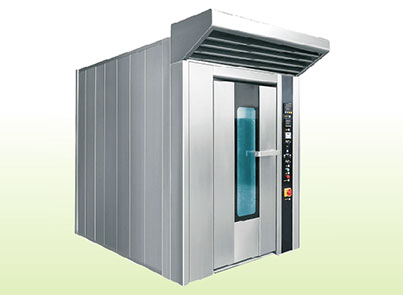

Biscuit Oven
