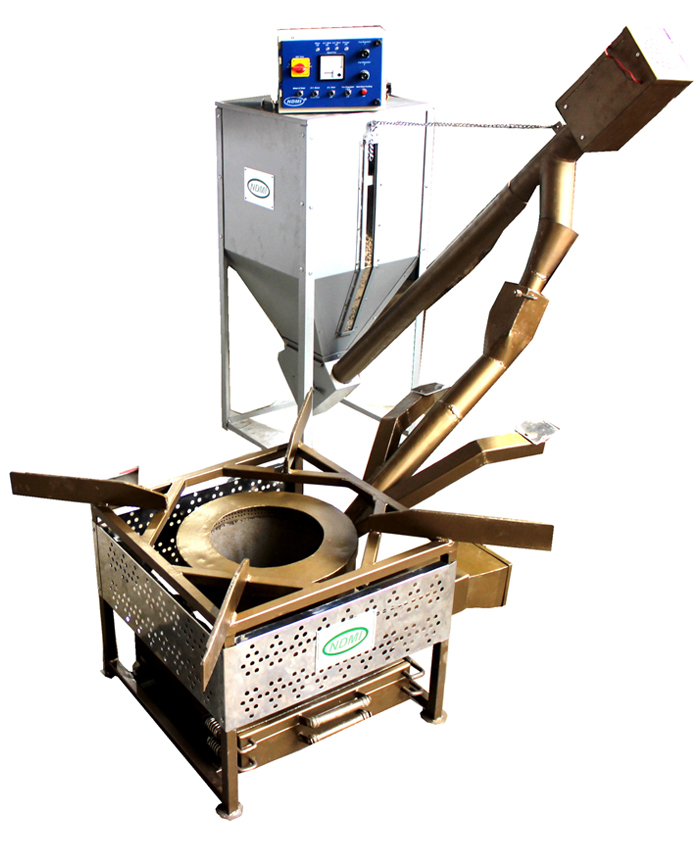

CFS-Type 3

  • Roll over image to zoom in

CFS-Type 3

The Machine is best suited to prepare Boondi & Namkeen with Traditional taste as cooked on wood pellets and perfect colour.

Applications

  • Automatic Pellet Feed Mechanism With DC Support .
  • Multiple Stage Pellet Feeding System .
  • High Performance Vertical flame Combustion burner.
  • High Efficiency & Uniform Flames.
  • High Grade 1600 Degree resistant combustion chamber.
  • Fuel Hopper For Continuous Fuel Supply & Customized vessel Support.
  • Multiple Applications for Sweets Namkeen,Sev & Boondi Applications.
  • Best machine Available in India so far for Boondi applications.
  • Less than 200 watts of Electricity required.
  • Can Also run on Solar panel of 500 Watts too.

CFS-Type 3 Applications

Boondi

Dalmoth

Sev

Bhujia

Specifications

Features Descriptions
Fuel Required 15-40 Kg of Pellets per Hour
Operational Time Continuous (can be run without any break above 12Hrs)
Temperature Control Highest & Lowest Side auto Cut with Digital Display & temperature sensor probe is provided.
Stove Weight 100kg (Without Ring & Chimney)
Fuel Type Biomass Pellets (6-8mm)
Pressure & Safety Thermal Safety & Backpressure Device equipped.
Efficiency & Ash content Efficiency 90 % & Ash content > 2%
Reactor Type 1600 Degree Temperature Resistant
Battery Cycle 8-10 Hours Backup after full charge of 4-5 Hours. (12V, 80AH Battery)
Fans 4 Fans , 12Volts DC
Capacity Could take load up to 800 Kg.
Performance Indicator All Purpose Stove , Can be Run at Multiple Levels
Warranty 1 year (stove), 6 months (Electronic Components)
