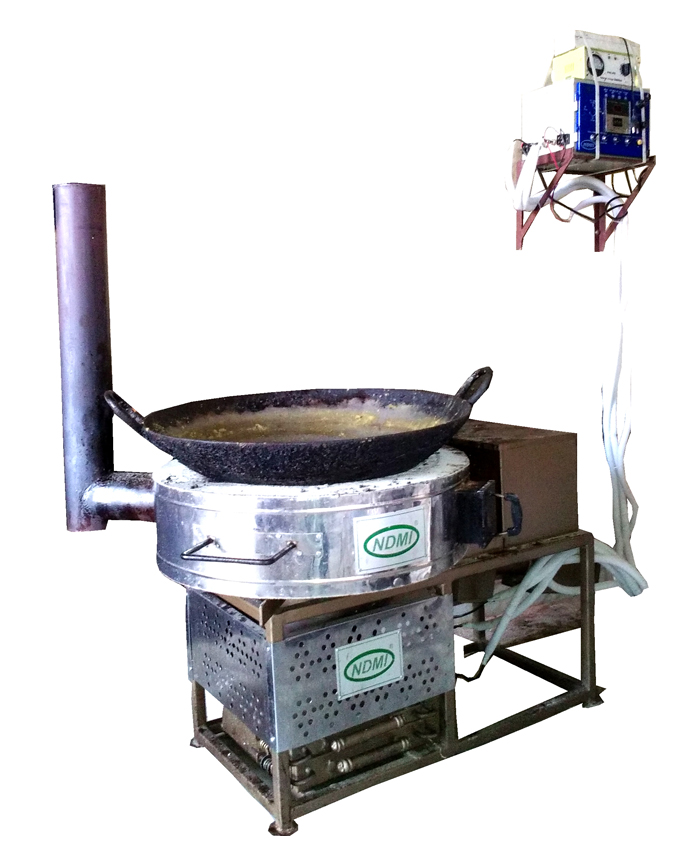

Mini CFS

The Machine is best suited to prepare milk which requires extremely low heat such as Rabri ,Kulfi & Kalakand items with Traditional taste .The Machine can be run as simmer as LPG stove could .

Applications

  • Automatic Pellet Feed Mechanism With DC Support .
  • Multiple Stage Pellet Feeding System.
  • High Performance Combustion Stove.
  • High Efficiency & Uniform Flames.
  • High Grade 1600 Degree resistant combustion chamber.
  • Fuel Hopper For Continuous Fuel Supply & Customized vessel Support.
  • Suits Low heat Sweets Making, Boiling & Frying Applications upto 25 ltrs
  • Less than 100 watts of Electricity required.
  • Can Also run on Solar panel of 100 Watts too.

CFS-Type2 Applications

Rabri

Kulfi

Kalakand

Specifications

Features Descriptions
Fuel Required 2-6 Kg of Pellets per Hour
Operational Time Continuous (can be run without any break above 4-5Hrs)
Ceramic Ring 18" Ring suits Kadhai upto 22 Inches
Stove Weight 50 kg (Without Ring & Chimney)
Fuel Type Biomass Pellets (6-8mm)
Efficiency & Ash content Efficiency 75 % & Ash content > 2%
Reactor Type 1600 Degree Temperature Resistant
Battery Cycle 2-3 Hours Backup after full charge of 4-5 Hours. (12V, 7.2 AH SMF Battery)
Fans 3 Fans , 12Volts DC
Capacity Could take load up to 200 Kg.
Performance Indicator All Purpose Stove , Can be Run at Multiple Levels
Warranty 1 year (stove), 6 months (Electronic Components)
